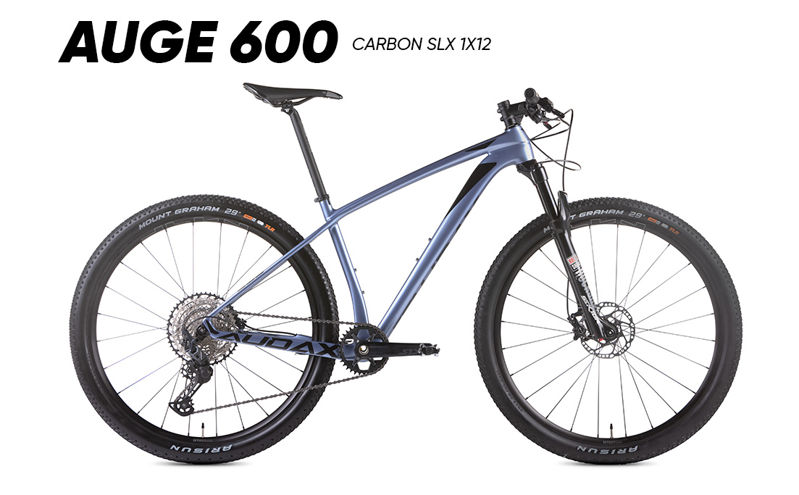

2022 Audax Auge 600 geometry
Full frame geometry for the 2022 Audax Auge 600, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15" | 597.4 | 394.3 | 76.2 | 69 | 98 | 564.6 | 381 | 57 | 658.8 | 439.2 | 1091.6 | 51 |
| 17" | 607 | 416.5 | 75.3 | 70 | 100 | 590 | 432 | 57 | 673.2 | 439.2 | 1106.1 | 51 |
| 19" | 616 | 433.3 | 75 | 70 | 110 | 610 | 480 | 57 | 693.4 | 439.2 | 1126.3 | 51 |
All measurements in millimetres unless marked (°) for angles.
