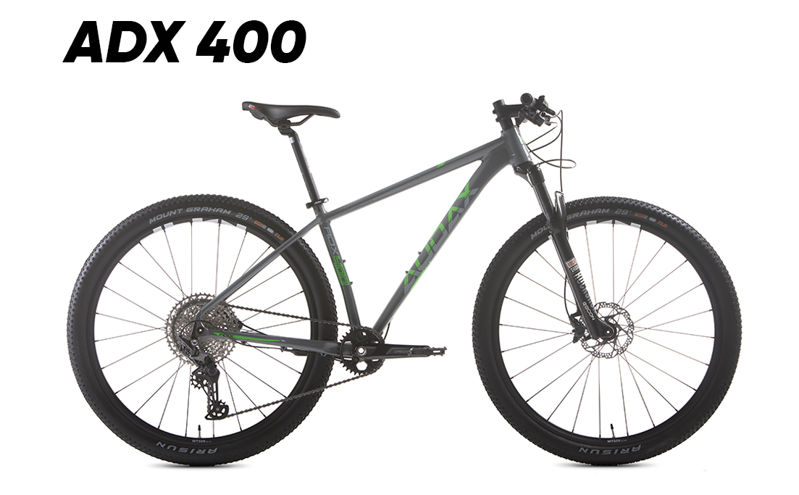

2022 Audax Adx 400 geometry
Full frame geometry for the 2022 Audax Adx 400, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | 599.7 | 390.8 | 73.5 | 69 | 90 | 568.4 | 394 | 60 | 645.7 | 440 | 1078.8 | 42 |
| 17" | 609.1 | 413.3 | 73.5 | 69 | 100 | 593.7 | 431 | 60 | 671.7 | 440 | 1104.9 | 42 |
| 19" | 618.4 | 436.8 | 73.5 | 69 | 110 | 620 | 483 | 60 | 698.7 | 440 | 1132.1 | 42 |
| 21" | 627.7 | 459.1 | 73.5 | 69 | 120 | 645 | 533 | 60 | 724.5 | 440 | 1157.9 | 42 |
All measurements in millimetres unless marked (°) for angles.
