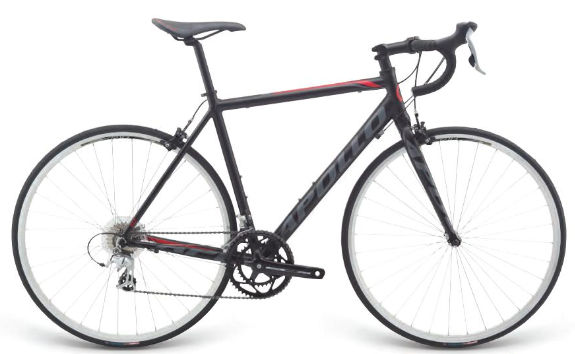

2013 Apollo Volare geometry
Full frame geometry for the 2013 Apollo Volare, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 534 | 382 | 74 | 72 | 135 | 535 | 490 | 772 | 68 | 582 | 410 | 985 | 45 | 61 |
| M | 555 | 381 | 73.5 | 72.5 | 155 | 545 | 530 | 804 | 68 | 583 | 410 | 985 | 45 | 58 |
| ML | 576 | 390 | 73.5 | 73 | 175 | 560 | 550 | 825 | 68 | 593 | 410 | 995 | 45 | 55 |
| L | 596 | 393 | 73 | 73.5 | 195 | 575 | 570 | 847 | 68 | 598 | 410 | 1005 | 45 | 52 |
| XL | 616 | 406 | 72.5 | 73.5 | 215 | 600 | 600 | 873 | 68 | 616 | 410 | 1019 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
