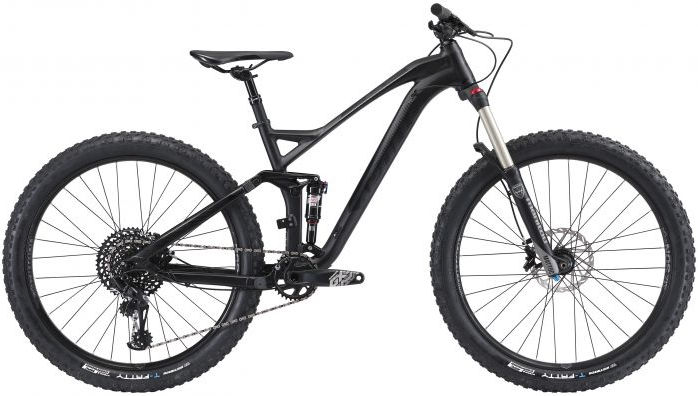

2019 Apollo Trail D 20 geometry
Full frame geometry for the 2019 Apollo Trail D 20, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 601 | 427 | 73.5 | 66.3 | 120 | 605 | 432 | 840 | 20 | 450 | 1204 | 42 | 114 |
| L | 620 | 451 | 73 | 66.3 | 140 | 640 | 483 | 877 | 20 | 450 | 1242 | 42 | 114 |
All measurements in millimetres unless marked (°) for angles.
