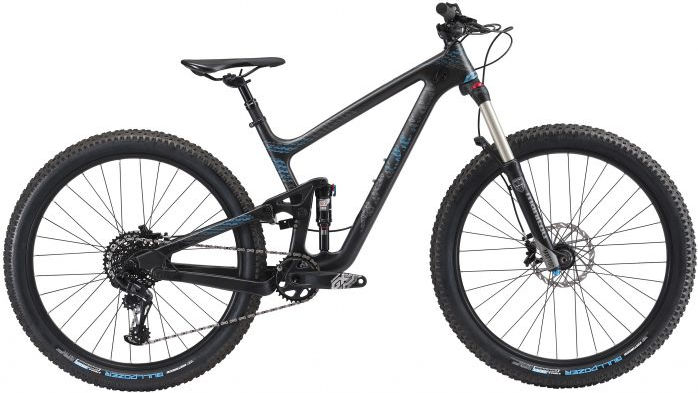

2019 Apollo Trail D 30 geometry
Full frame geometry for the 2019 Apollo Trail D 30, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 613 | 440 | 74 | 68.5 | 105 | 616 | 430 | 840 | 24 | 443 | 1170 | 51 | 88 |
| L | 623 | 456 | 74 | 68.5 | 115 | 635 | 489 | 876 | 24 | 443 | 1189 | 51 | 88 |
All measurements in millimetres unless marked (°) for angles.
