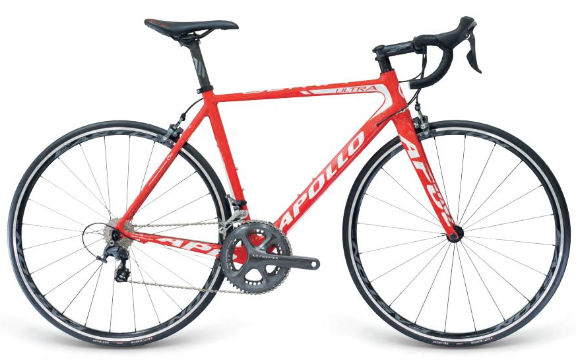

2013 Apollo Ultra MKI geometry
Full frame geometry for the 2013 Apollo Ultra MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 504 | 374 | 75.5 | 71.5 | 105 | 504 | 460 | 740 | 68 | 569 | 407 | 968 | 45 | 64 |
| XS | 513 | 378 | 74.5 | 71.5 | 115 | 520 | 480 | 756 | 68 | 576 | 407 | 975 | 45 | 64 |
| S | 529 | 382 | 74 | 72 | 130 | 534 | 500 | 775 | 68 | 581 | 407 | 980 | 45 | 61 |
| M | 547 | 391 | 74 | 73 | 145 | 548 | 520 | 794 | 68 | 586 | 407 | 985 | 45 | 55 |
| ML | 563 | 397 | 74 | 73.5 | 160 | 558 | 540 | 813 | 68 | 592 | 407 | 992 | 45 | 52 |
| L | 582 | 401 | 73.5 | 73.5 | 180 | 573 | 560 | 833 | 68 | 601 | 407 | 999 | 45 | 52 |
| XL | 601 | 399 | 73 | 73.5 | 200 | 583 | 580 | 854 | 68 | 605 | 407 | 1005 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
