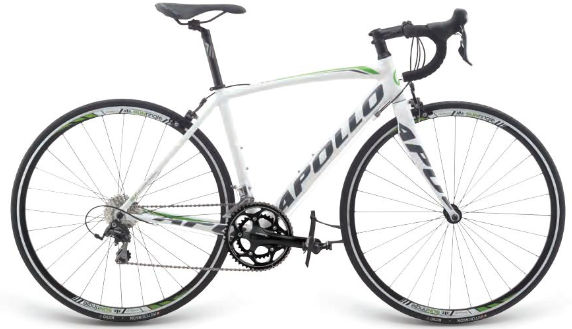

2013 Apollo Silhouette geometry
Full frame geometry for the 2013 Apollo Silhouette, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 374 | 75 | 71 | 110 | 510 | 440 | 732 | 68 | 575 | 410 | 970 | 45 | 67 |
| S | 532 | 371 | 74.5 | 71.5 | 135 | 519 | 460 | 755 | 68 | 576 | 410 | 977 | 45 | 64 |
| M | 539 | 374 | 74 | 72 | 140 | 528 | 500 | 780 | 68 | 576 | 410 | 978 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
