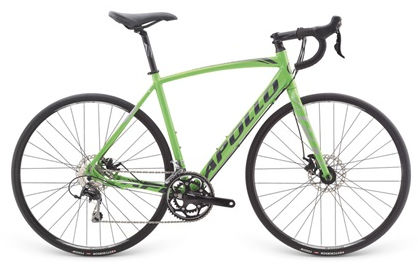

2013 Apollo Giro Disc geometry
Full frame geometry for the 2013 Apollo Giro Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 545 | 379 | 74 | 72 | 135 | 535 | 490 | 778 | 68 | 583 | 430 | 1005 | 45 | 61 |
| M | 566 | 377 | 73.5 | 72.5 | 155 | 545 | 530 | 810 | 68 | 583 | 430 | 1005 | 45 | 58 |
| ML | 587 | 386 | 73.5 | 73 | 175 | 560 | 550 | 831 | 68 | 593 | 430 | 1015 | 45 | 55 |
| L | 608 | 389 | 73 | 73.5 | 195 | 575 | 570 | 852 | 68 | 597 | 430 | 1025 | 45 | 52 |
| XL | 627 | 402 | 72.5 | 73.5 | 215 | 600 | 600 | 878 | 68 | 616 | 430 | 1039 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
