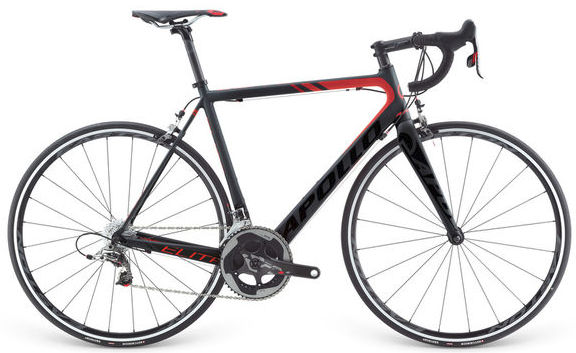

2013 Apollo Elite geometry
Full frame geometry for the 2013 Apollo Elite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 378 | 74.5 | 72 | 125 | 523 | 500 | 772 | 68 | 575 | 406 | 972 | 45 | 61 |
| S | 543 | 378 | 74 | 72 | 145 | 534 | 530 | 798 | 68 | 582 | 406 | 979 | 45 | 61 |
| M | 559 | 383 | 73.5 | 72.5 | 160 | 549 | 550 | 817 | 68 | 587 | 406 | 985 | 45 | 58 |
| L | 580 | 393 | 73 | 73 | 180 | 570 | 580 | 844 | 68 | 598 | 406 | 996 | 45 | 55 |
| XL | 601 | 406 | 73 | 73.5 | 200 | 590 | 610 | 870 | 68 | 612 | 406 | 1010 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
