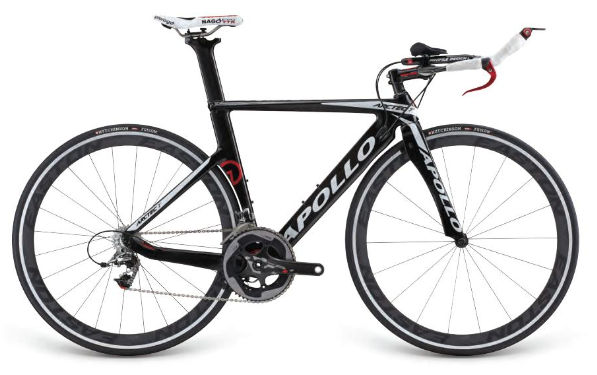

2013 Apollo Arctec T geometry
Full frame geometry for the 2013 Apollo Arctec T, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 474 | 403 | 76 | 72.5 | 70 | 521 | 460 | 725 | 68 | 577 | 385 | 953 | 43 | 60 |
| M | 488 | 413 | 76 | 73 | 82 | 535 | 489 | 746 | 68 | 588 | 385 | 965 | 43 | 57 |
| L | 519 | 421 | 76 | 73 | 115 | 550 | 519 | 777 | 68 | 605 | 385 | 982 | 43 | 57 |
| XL | 554 | 427 | 76 | 73.5 | 150 | 565 | 549 | 810 | 68 | 617 | 385 | 995 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
