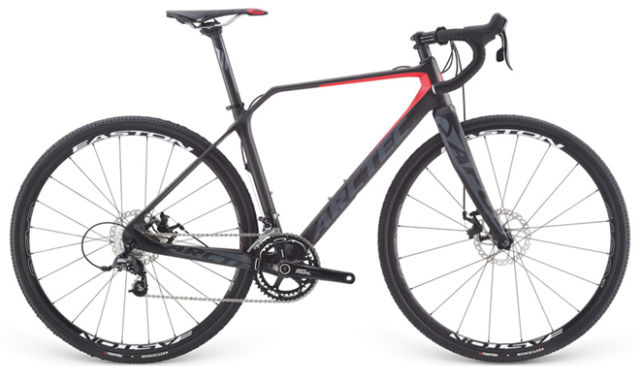

2013 Apollo Arctec CX geometry
Full frame geometry for the 2013 Apollo Arctec CX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 580 | 379 | 74 | 72.5 | 155 | 545 | 530 | 816 | 68 | 589 | 425 | 1011 | 45 | 61 |
| ML | 601 | 382 | 73.5 | 73 | 175 | 560 | 550 | 838 | 68 | 594 | 425 | 1020 | 45 | 58 |
| L | 622 | 385 | 73 | 73.5 | 195 | 575 | 570 | 860 | 68 | 597 | 425 | 1025 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
