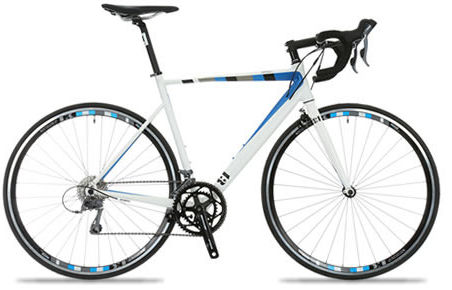

2014 13Bikes Intrinsic geometry
Full frame geometry for the 2014 13Bikes Intrinsic, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 531 | 383 | 74 | 72 | 130 | 535 | 515 | 70 | 580 | 410 | 980 | 45 | 61 |
| M | 552 | 376 | 73 | 73 | 150 | 545 | 540 | 68 | 585 | 410 | 985 | 45 | 55 |
| L | 566 | 392 | 73 | 73 | 165 | 565 | 560 | 68 | 595 | 410 | 995 | 45 | 55 |
| XL | 579 | 398 | 73 | 73.5 | 180 | 575 | 580 | 65 | 599 | 410 | 1000 | 45 | 52 |
All measurements in millimetres unless marked (°) for angles.
