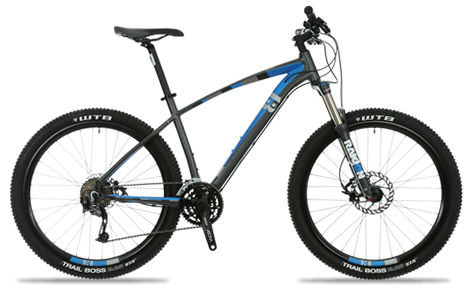

2014 13Bikes Incline geometry
Full frame geometry for the 2014 13Bikes Incline, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 399 | 73 | 68 | 115 | 585 | 410 | 45 | 678 | 425 | 1090 | 45 |
| M | 614 | 422 | 73 | 68 | 120 | 610 | 460 | 45 | 703 | 425 | 1120 | 45 |
| L | 628 | 432 | 72.5 | 68 | 135 | 630 | 495 | 45 | 719 | 425 | 1130 | 45 |
| XL | 641 | 448 | 72.5 | 68 | 150 | 650 | 530 | 45 | 740 | 425 | 1155 | 45 |
All measurements in millimetres unless marked (°) for angles.
