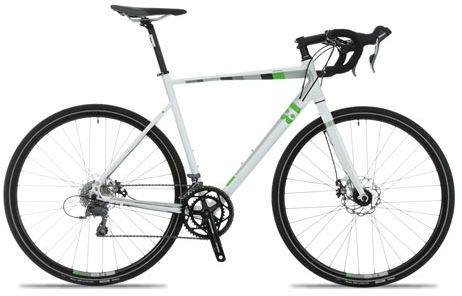

2014 13Bikes Innate geometry
Full frame geometry for the 2014 13Bikes Innate, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 549 | 378 | 74 | 71.5 | 130 | 535 | 515 | 65 | 594 | 430 | 1015 | 48 | 66 |
| M | 568 | 376 | 73 | 71.5 | 150 | 550 | 540 | 65 | 598 | 430 | 1020 | 48 | 66 |
| L | 584 | 386 | 73 | 72 | 165 | 565 | 560 | 65 | 608 | 430 | 1030 | 48 | 63 |
| XL | 600 | 396 | 73 | 72.5 | 180 | 580 | 580 | 65 | 618 | 430 | 1040 | 48 | 60 |
All measurements in millimetres unless marked (°) for angles.
