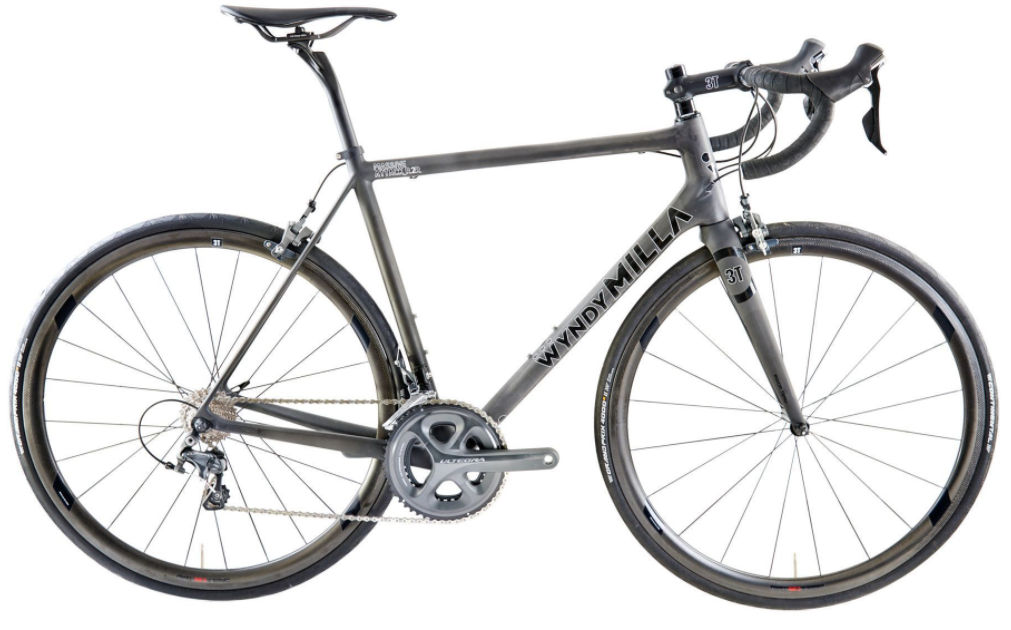

2017 Wyndy Milla Massive Attack R2R geometry
Full frame geometry for the 2017 Wyndy Milla Massive Attack R2R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 524 | 373 | 74 | 72 | 130 | 525 | 480 | 770 | 68 | 574 | 405 | 969 |
| M | 540 | 385 | 73.5 | 73 | 145 | 545 | 510 | 796 | 66 | 581 | 405 | 977 |
| L | 571 | 391 | 73 | 73.5 | 175 | 565 | 540 | 828 | 66 | 592 | 405 | 988 |
| XL | 596 | 398 | 72.5 | 73.5 | 205 | 585 | 570 | 860 | 63 | 607 | 408 | 1007 |
All measurements in millimetres unless marked (°) for angles.
