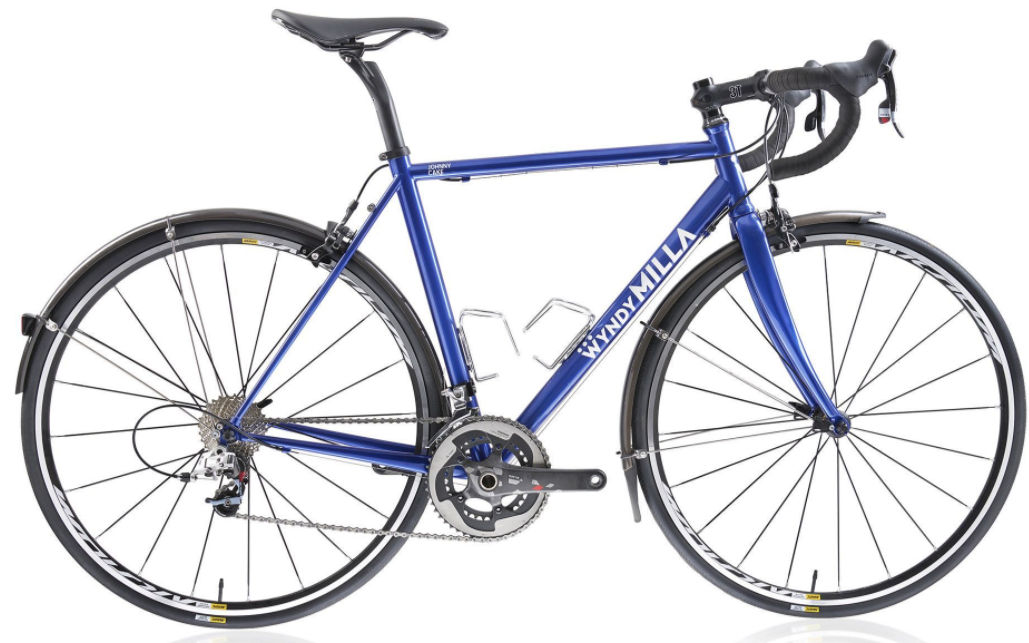

2017 Wyndy Milla Johnny Cake geometry
Full frame geometry for the 2017 Wyndy Milla Johnny Cake, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| WS | 541 | 347 | 74.5 | 69.5 | 130 | 500 | 493 | 778 | 80 | 420 |
| S | 542 | 368 | 74.5 | 71 | 125 | 520 | 509 | 786 | 80 | 420 |
| WM | 561 | 363 | 74.5 | 71 | 145 | 520 | 511 | 797 | 80 | 420 |
| M | 571 | 375 | 74.5 | 72.5 | 150 | 535 | 547 | 821 | 80 | 420 |
| L | 595 | 384 | 74.5 | 72.5 | 175 | 550 | 570 | 844 | 80 | 420 |
| XL | 609 | 405 | 74 | 73 | 190 | 580 | 591 | 865 | 78 | 420 |
All measurements in millimetres unless marked (°) for angles.
