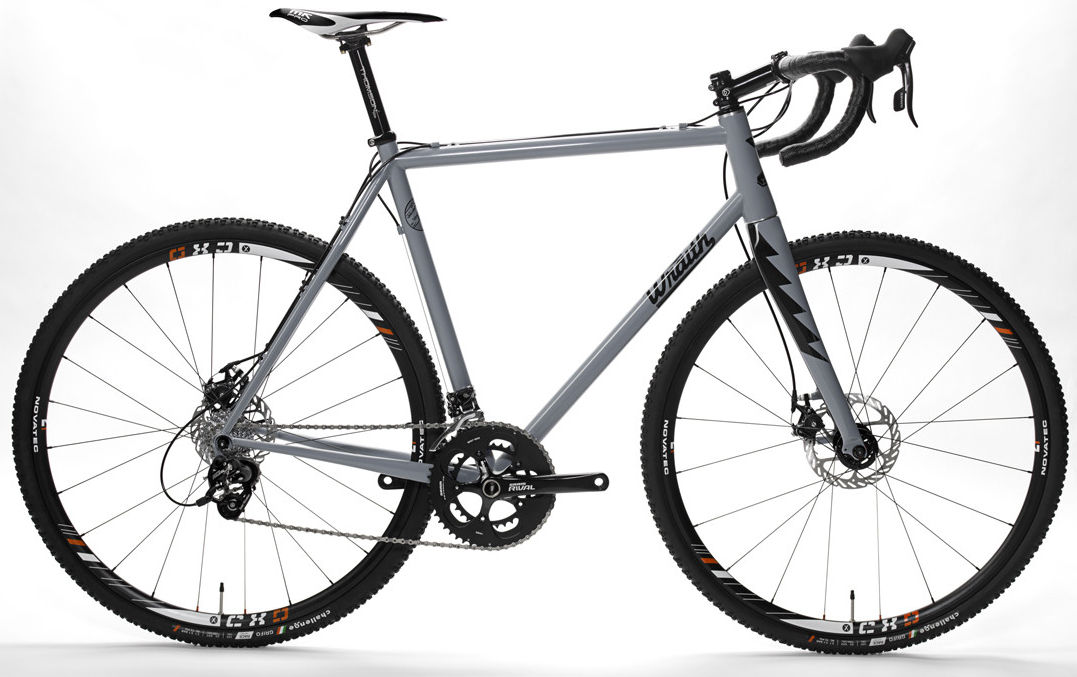

2014 Wraith The Paycheck geometry
Full frame geometry for the 2014 Wraith The Paycheck, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 535 | 370 | 73.5 | 71 | 130 | 530 | 732 | 70 | 582 | 430 | 1002 |
| M | 552 | 375 | 73 | 72 | 145 | 545 | 775 | 70 | 584 | 430 | 1004 |
| ML | 563 | 378 | 73 | 72.5 | 155 | 550 | 792 | 70 | 585 | 430 | 1005 |
| L | 578 | 383 | 73 | 72.5 | 160 | 560 | 815 | 70 | 595 | 430 | 1015 |
All measurements in millimetres unless marked (°) for angles.
