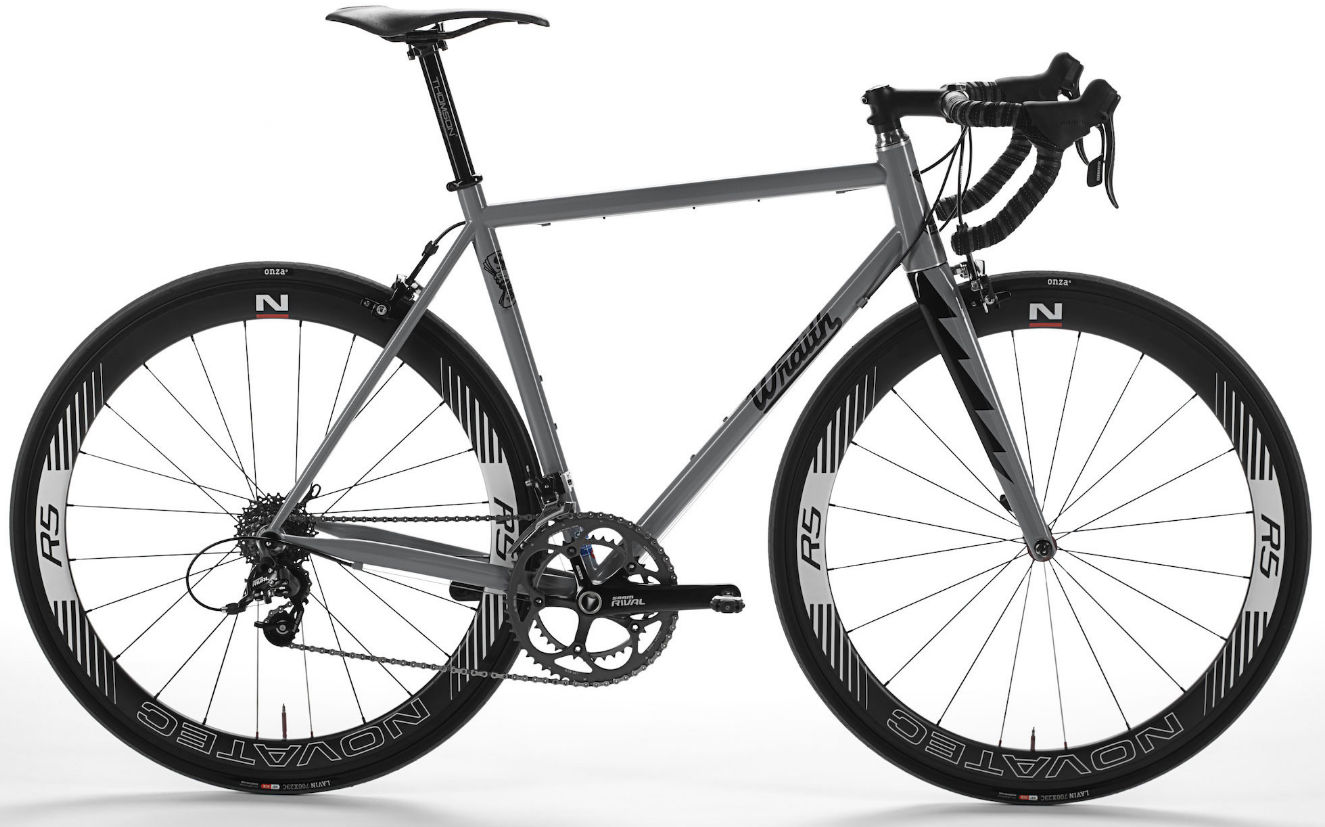

2014 Wraith The Hustle geometry
Full frame geometry for the 2014 Wraith The Hustle, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 527 | 358 | 73.5 | 72 | 120 | 505 | 747 | 70 | 558 | 407 | 935 |
| M | 559 | 364 | 73 | 73 | 150 | 540 | 782 | 70 | 563 | 407 | 957 |
| ML | 582 | 387 | 73 | 72.5 | 175 | 565 | 815 | 70 | 598 | 407 | 995 |
| L | 591 | 404 | 73 | 72.5 | 185 | 585 | 828 | 70 | 617 | 407 | 1014 |
All measurements in millimetres unless marked (°) for angles.
