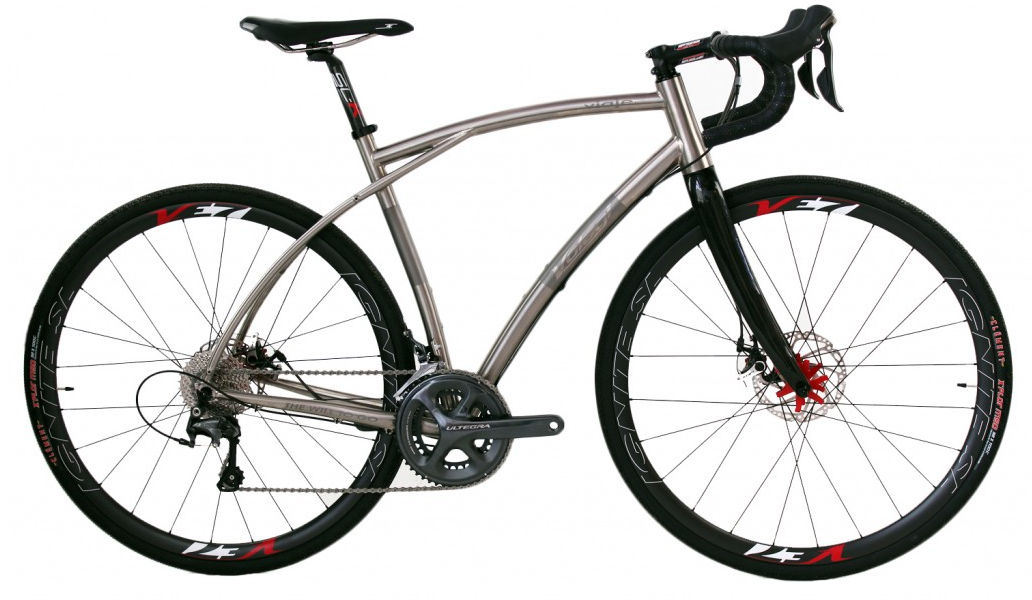

2015 Volagi Viaje Ti geometry
Full frame geometry for the 2015 Volagi Viaje Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 539 | 363 | 74.8 | 71.3 | 117 | 514 | 756 | 72 | 579 | 413 | 981 | 50 | 63 |
| 53 | 560 | 368 | 74 | 71.8 | 137 | 531 | 781 | 72 | 586 | 413 | 988 | 50 | 60 |
| 55 | 576 | 372 | 73.5 | 72 | 155 | 544 | 800 | 70 | 593 | 415 | 998 | 50 | 58 |
| 57 | 601 | 382 | 73.3 | 72.3 | 182 | 564 | 825 | 68 | 608 | 415 | 1014 | 50 | 57 |
| 60 | 645 | 391 | 72.8 | 72.5 | 227 | 592 | 858 | 68 | 629 | 418 | 1038 | 50 | 55 |
| 63 | 679 | 405 | 72 | 72.8 | 262 | 624 | 890 | 68 | 650 | 418 | 1059 | 50 | 54 |
All measurements in millimetres unless marked (°) for angles.
