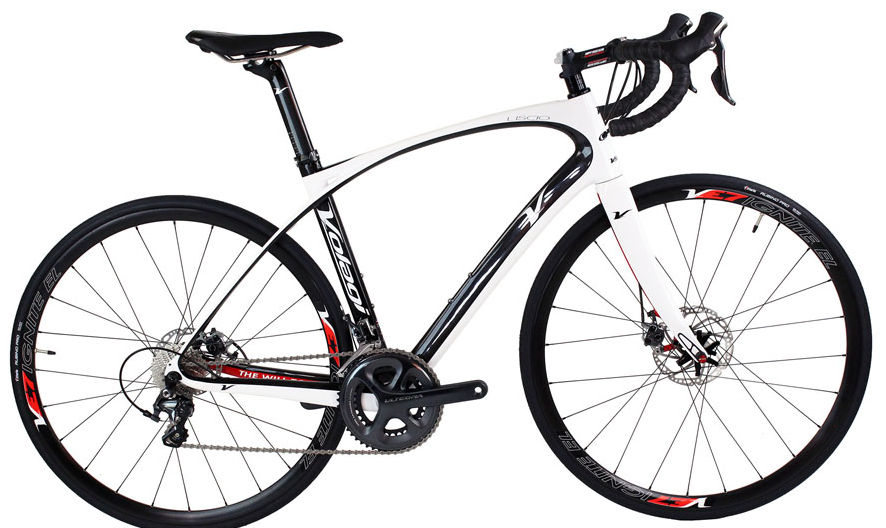

2015 Volagi Liscio geometry
Full frame geometry for the 2015 Volagi Liscio, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 530 | 362 | 75.5 | 71 | 122 | 505 | 740 | 74 | 578 | 410 | 977 | 52 | 62 |
| 50 | 537 | 374 | 75.5 | 72 | 127 | 516 | 745 | 72 | 579 | 410 | 978 | 48 | 60 |
| 53 | 557 | 377 | 74 | 72.3 | 147 | 537 | 770 | 72 | 586 | 410 | 985 | 48 | 58 |
| 55 | 574 | 379 | 73.5 | 72.5 | 167 | 549 | 790 | 70 | 591 | 412 | 993 | 48 | 57 |
| 57 | 598 | 387 | 73.3 | 72.8 | 192 | 567 | 815 | 68 | 605 | 412 | 1008 | 48 | 55 |
| 60 | 641 | 399 | 72.8 | 73 | 237 | 596 | 848 | 68 | 626 | 414 | 1031 | 48 | 54 |
All measurements in millimetres unless marked (°) for angles.
