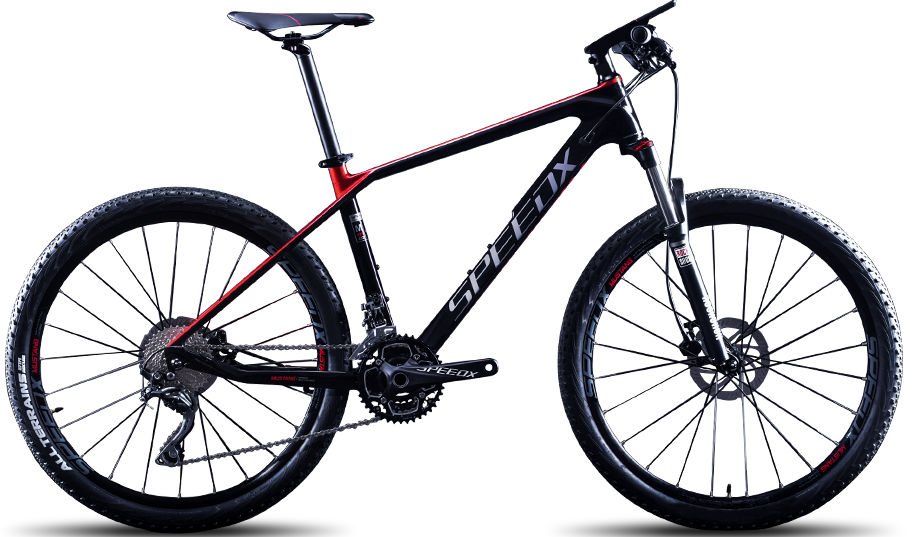

2016 SpeedX Mustang geometry
Full frame geometry for the 2016 SpeedX Mustang, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 562 | 378 | 73.5 | 69.5 | 110 | 544 | 381 | 772 | 30 | 619 | 425 | 1042 | 39 |
| 17 | 571 | 397 | 73 | 69.5 | 120 | 572 | 432 | 804 | 30 | 642 | 425 | 1065 | 39 |
| 19 | 581 | 417 | 73 | 69.5 | 130 | 595 | 483 | 835 | 30 | 666 | 425 | 1089 | 39 |
All measurements in millimetres unless marked (°) for angles.
