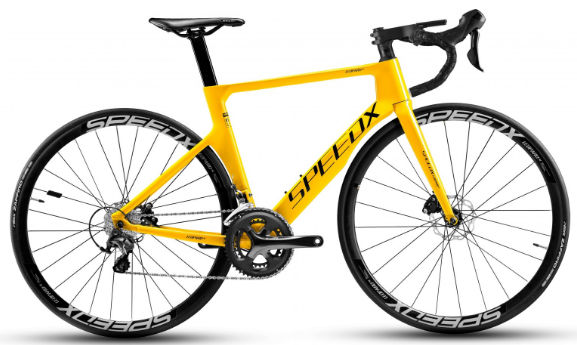

2016 SpeedX Leopard AL geometry
Full frame geometry for the 2016 SpeedX Leopard AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 484 | 360 | 74 | 71 | 95 | 500 | 420 | 727 | 60 | 557 | 405 | 955 | 45 |
| 45 | 503 | 370 | 74 | 72 | 110 | 515 | 450 | 752 | 60 | 565 | 405 | 962 | 45 |
| 48 | 519 | 380 | 74 | 72.5 | 125 | 530 | 480 | 775 | 60 | 576 | 405 | 973 | 45 |
| 51 | 535 | 387 | 74 | 73 | 140 | 540 | 510 | 799 | 60 | 582 | 405 | 980 | 45 |
| 54 | 549 | 403 | 74 | 73 | 155 | 560 | 540 | 822 | 60 | 599 | 405 | 1000 | 45 |
| 57 | 564 | 408 | 74 | 73 | 170 | 570 | 570 | 845 | 60 | 612 | 405 | 1008 | 45 |
All measurements in millimetres unless marked (°) for angles.
