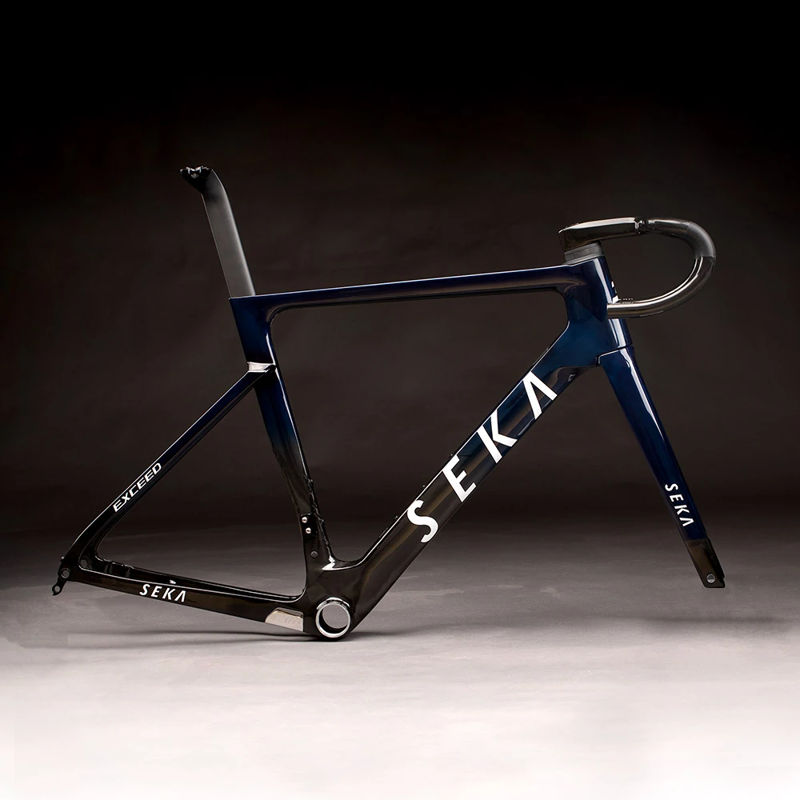

2020 Seka Exceed geometry
Full frame geometry for the 2020 Seka Exceed, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 360.5 | 75.3 | 70.7 | 108 | 494.6 | 446 | 73 | 571 | 410 | 970 | 50 | 65 |
| S | 528 | 371 | 74 | 72 | 123 | 520.5 | 489 | 72 | 576 | 410 | 975 | 50 | 58 |
| M | 548 | 379 | 74 | 72.6 | 142 | 535.7 | 512 | 72 | 580 | 410 | 980 | 46 | 58 |
| L | 571 | 387 | 73 | 72.6 | 167 | 561.9 | 533 | 72 | 595 | 410 | 994 | 46 | 58 |
| XL | 594 | 394 | 73 | 73 | 193 | 575.4 | 556 | 70 | 608 | 410 | 1008 | 46 | 57 |
All measurements in millimetres unless marked (°) for angles.
