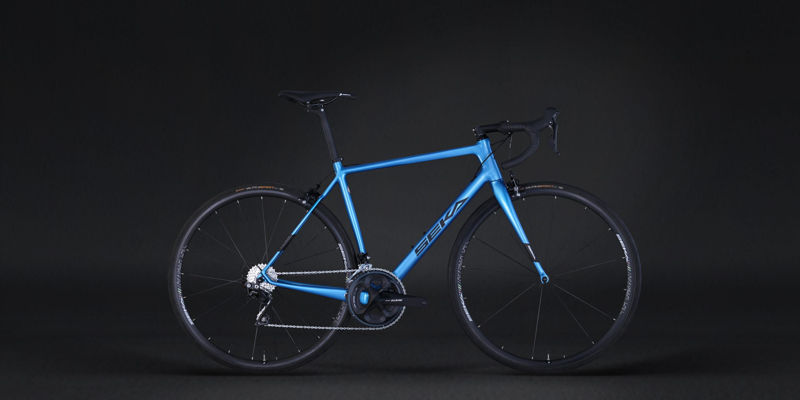

2020 Seka Afeild R7000 geometry
Full frame geometry for the 2020 Seka Afeild R7000, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 535 | 369 | 74.5 | 71.5 | 130 | 517 | 490 | 68 | 585 | 407 | 983 | 53 |
| M | 557 | 377 | 74 | 72 | 150 | 537 | 510 | 68 | 596 | 407 | 993 | 53 |
| L | 579 | 387 | 73 | 73 | 170 | 564 | 530 | 68 | 602 | 407 | 1000 | 53 |
| XL | 600 | 397 | 73 | 73.5 | 190 | 580 | 550 | 68 | 614 | 407 | 1011 | 53 |
All measurements in millimetres unless marked (°) for angles.
