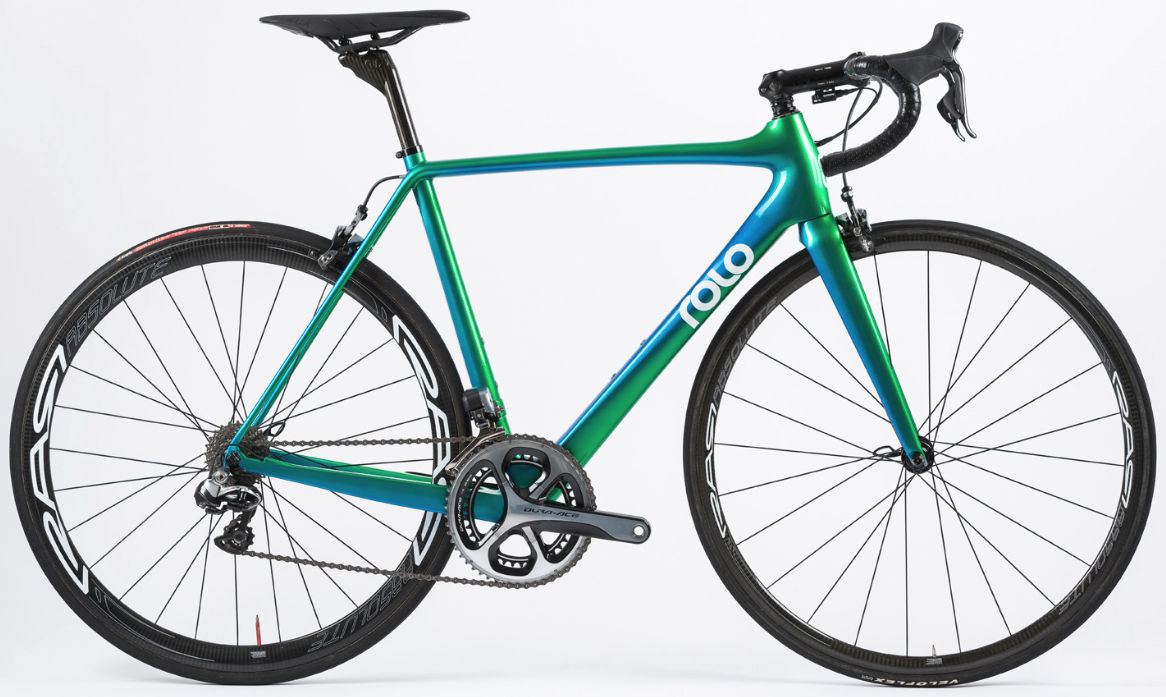

2017 Rolo The Bike MKII geometry
Full frame geometry for the 2017 Rolo The Bike MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 364 | 528 | 364 | 72.8 | 72 | 115 | 530 | 74 | 576 | 411 | 976 | 50 | 52 |
| 375 | 567 | 375 | 72.8 | 73.5 | 154 | 553 | 74 | 574 | 411 | 973 | 46 | 52 |
| 386 | 585 | 386 | 72.8 | 73.5 | 173 | 566 | 74 | 591 | 411 | 991 | 46 | 52 |
| 397 | 600 | 397 | 72.8 | 73.5 | 188 | 582 | 74 | 606 | 420 | 1015 | 46 | 52 |
| 409 | 625 | 409 | 73 | 73.5 | 208 | 598 | 74 | 622 | 420 | 1031 | 46 | 52 |
All measurements in millimetres unless marked (°) for angles.
