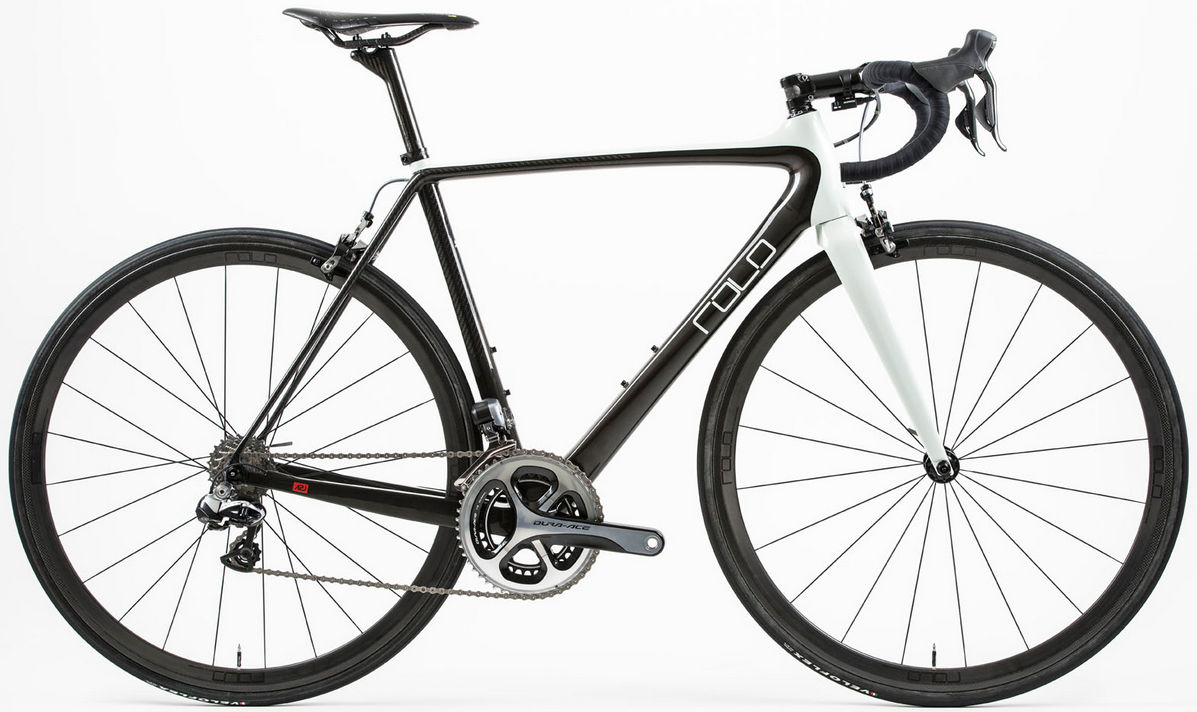

2014 Rolo The Bike MKI geometry
Full frame geometry for the 2014 Rolo The Bike MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 363 | 546 | 363 | 72.8 | 71.9 | 135 | 533 | 74 | 576 | 411 | 976 | 46 | 62 |
| 376 | 562 | 376 | 72.8 | 73.5 | 150 | 549 | 74 | 574 | 411 | 973 | 46 | 52 |
| 387 | 580 | 387 | 72.8 | 73.5 | 168 | 566 | 74 | 591 | 411 | 991 | 46 | 52 |
| 397 | 600 | 397 | 72.8 | 73.5 | 183 | 582 | 74 | 606 | 420 | 1015 | 46 | 52 |
All measurements in millimetres unless marked (°) for angles.
