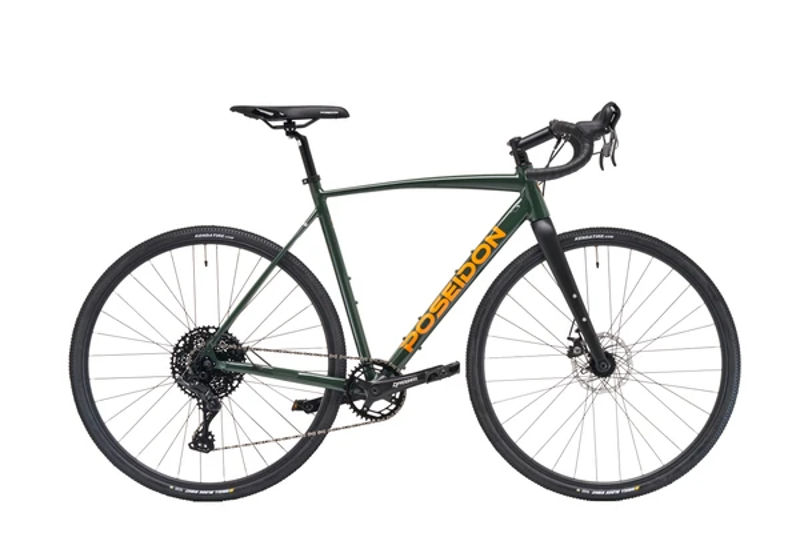

2022 Poseidon The X geometry
Full frame geometry for the 2022 Poseidon The X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| SMALL | 524.1 | 379.8 | 70 | 100 | 520 | 490 | 67 | 1013 |
| MEDIUM | 548.5 | 382.2 | 71.5 | 120 | 535 | 515 | 67 | 1011 |
| LARGE | 567.3 | 383.2 | 72 | 140 | 550 | 540 | 65 | 1012 |
| X-LARGE | 588.2 | 385.5 | 72.5 | 160 | 565 | 565 | 65 | 1017 |
All measurements in millimetres unless marked (°) for angles.
