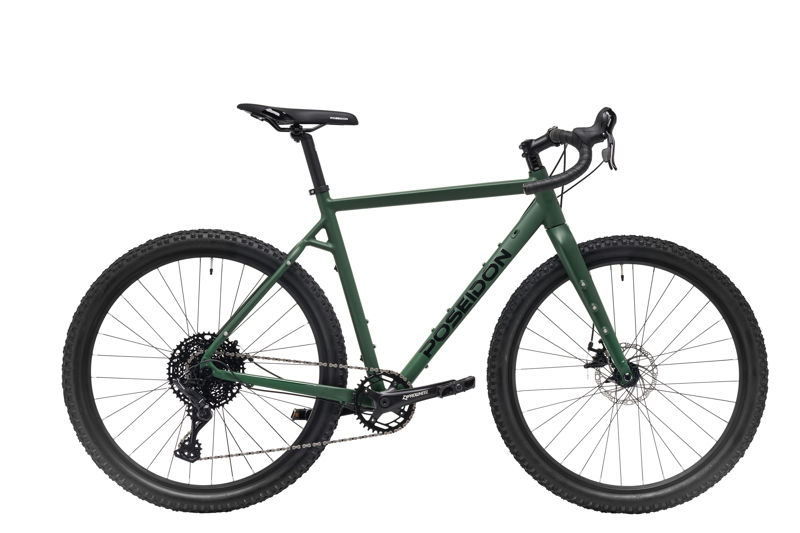

2022 Poseidon The Redwood geometry
Full frame geometry for the 2022 Poseidon The Redwood, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558.4 | 373.4 | 74 | 70.5 | 125 | 533.5 | 460 | 63.4 | 440 | 1027 | 45 |
| XXS | 558.4 | 367.4 | 74 | 71 | 125 | 527.5 | 420 | 63.4 | 440 | 1021 | 45 |
| S | 565.7 | 377.8 | 74 | 71.2 | 132 | 540 | 490 | 63.4 | 440 | 1032 | 45 |
| M | 570.7 | 384.4 | 73.5 | 71 | 138 | 553.5 | 520 | 63.4 | 440 | 1042 | 45 |
| L | 577.4 | 391.4 | 73.5 | 71 | 145 | 563.2 | 550 | 63.4 | 440 | 1052 | 45 |
| XL | 584 | 392.2 | 73 | 71 | 152 | 570 | 580 | 63.4 | 440 | 1053.7 | 45 |
All measurements in millimetres unless marked (°) for angles.
