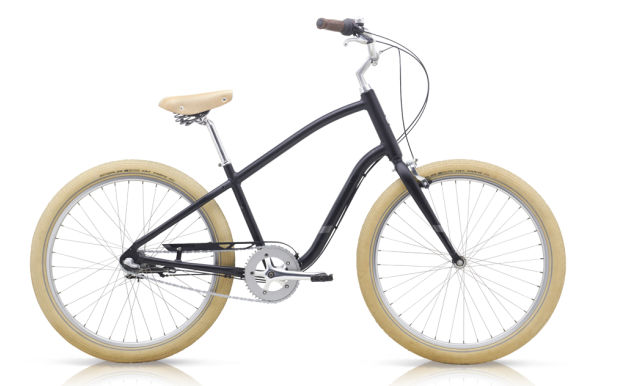

2017 Polygon Zenith Town geometry
Full frame geometry for the 2017 Polygon Zenith Town, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 590 | 301 | 65.5 | 66 | 230 | 570 | 406 | 719 | 33 |
| M | 608 | 308 | 65.5 | 66 | 250 | 585 | 456 | 763 | 33 |
All measurements in millimetres unless marked (°) for angles.
