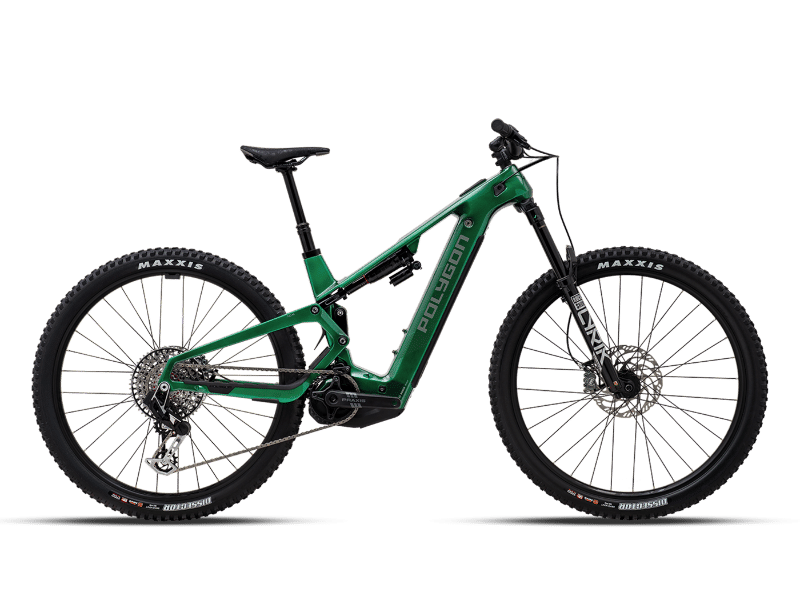

2026 Polygon Collosus TE geometry
Full frame geometry for the 2026 Polygon Collosus TE, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 620 | 440 | 72.6 | 62.5 | 90 | 568.8 | 390 | 738 | 38 | 450 | 1216 |
| M | 629 | 465 | 73 | 64.5 | 100 | 610.5 | 400 | 733 | 38 | 449 | 1245 |
| L | 643 | 485 | 73.3 | 64.5 | 115 | 630.1 | 415 | 727 | 38 | 450 | 1272 |
| XL | 656 | 505 | 73.5 | 64.5 | 130 | 652.5 | 430 | 722 | 38 | 450 | 1298 |
All measurements in millimetres unless marked (°) for angles.
