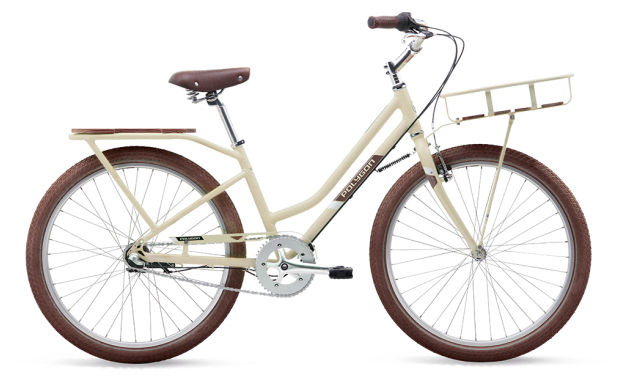

2017 Polygon Zenith Active geometry
Full frame geometry for the 2017 Polygon Zenith Active, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 536 | 365 | 70 | 69 | 140 | 560 | 406 | 472 | 37 |
| M | 550 | 380 | 70 | 69 | 155 | 580 | 445 | 476 | 37 |
All measurements in millimetres unless marked (°) for angles.
