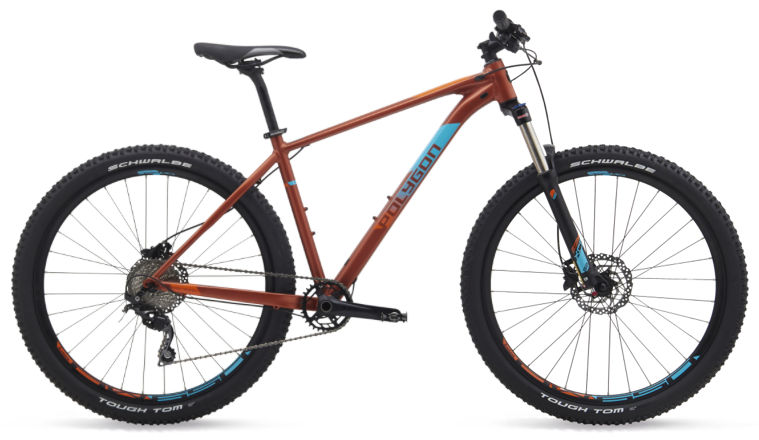

2017 Polygon Xtrada geometry
Full frame geometry for the 2017 Polygon Xtrada, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M (27.5) | 610 | 420 | 73 | 69 | 100 | 607 | 456 | 744 | 47 |
| S (27.5) | 610 | 400 | 73 | 69 | 100 | 587 | 406 | 711 | 47 |
| L (27.5) | 615 | 435 | 73 | 69 | 105 | 623 | 506 | 791 | 47 |
| L (29) | 624 | 435 | 71.7 | 69.5 | 100 | 626 | 470 | 775 | 60 |
| M (29) | 624 | 420 | 71.7 | 69.5 | 100 | 611 | 431 | 743 | 60 |
| XL (29) | 628 | 450 | 71.8 | 69.5 | 105 | 642 | 517 | 805 | 60 |
All measurements in millimetres unless marked (°) for angles.
