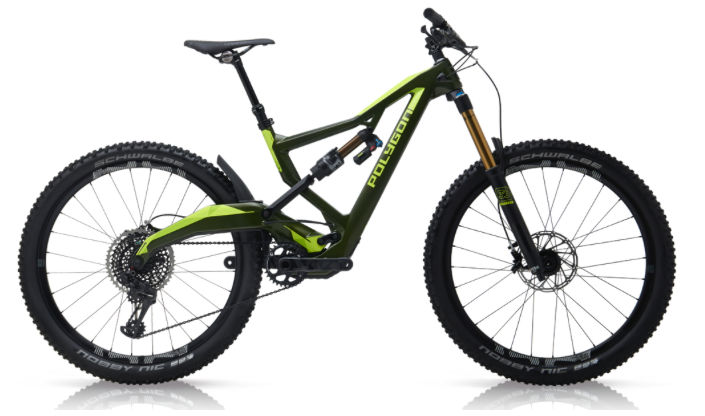

2017 Polygon Xquarone EX geometry
Full frame geometry for the 2017 Polygon Xquarone EX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 588 | 446 | 66 | 66 | 90 | 620 | 420 | 728 | 3 |
| L | 602 | 462 | 66.5 | 66 | 105 | 640 | 465 | 759 | 3 |
| XL | 620 | 471 | 67 | 66 | 125 | 655 | 485 | 776 | 3 |
All measurements in millimetres unless marked (°) for angles.
