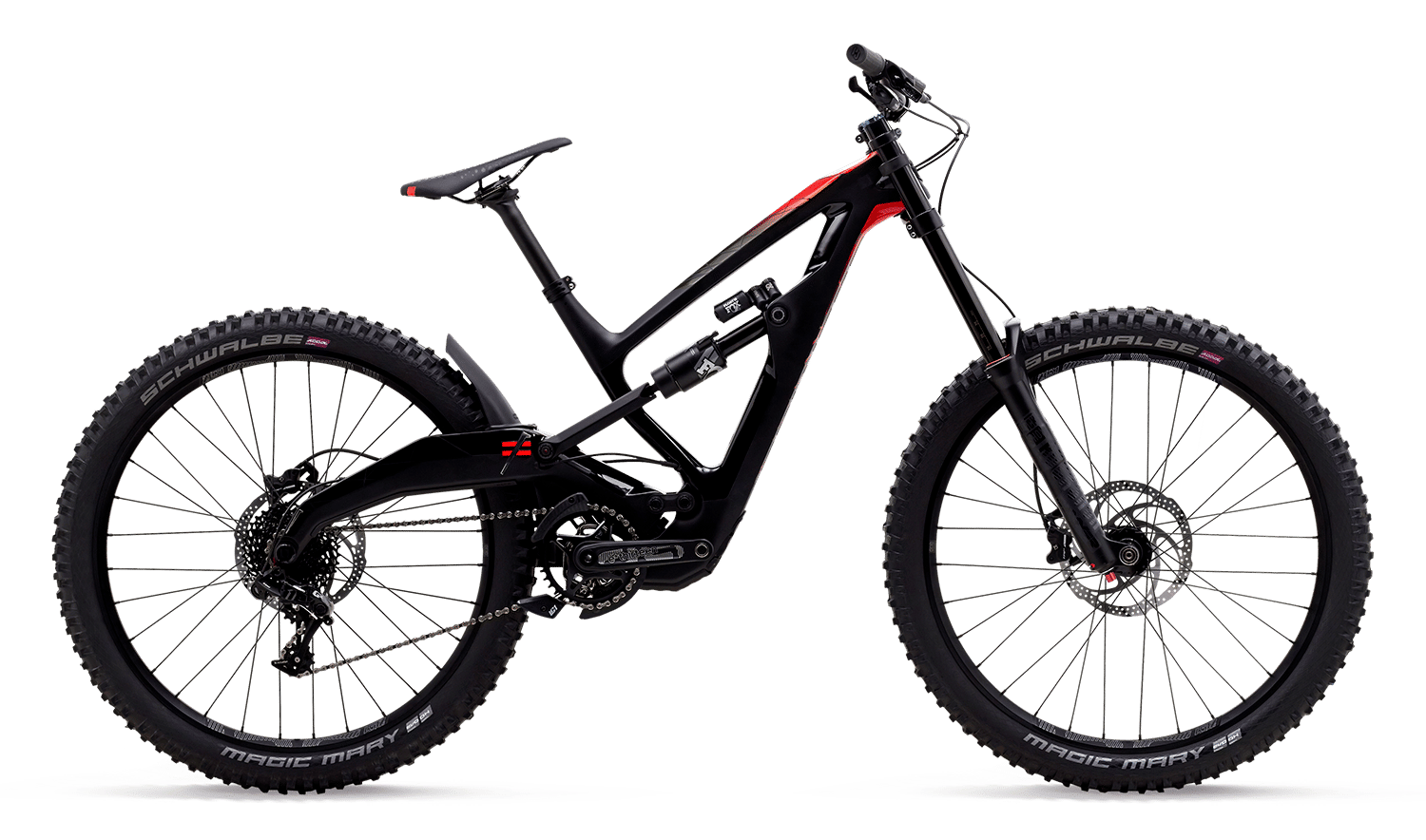

2019 Polygon Xquarone DH geometry
Full frame geometry for the 2019 Polygon Xquarone DH, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 595 | 425 | 73.4 | 63 | 98 | 602 | 400 | 703 | 6 | 440 | 1224 |
| S | 595 | 400 | 73.4 | 63 | 98 | 577 | 400 | 703 | 6 | 440 | 1199 |
| L | 605 | 450 | 73.1 | 63 | 109 | 634 | 400 | 703 | 6 | 440 | 1254 |
| XL | 605 | 475 | 73.1 | 63 | 109 | 659 | 400 | 703 | 6 | 440 | 1279 |
All measurements in millimetres unless marked (°) for angles.
