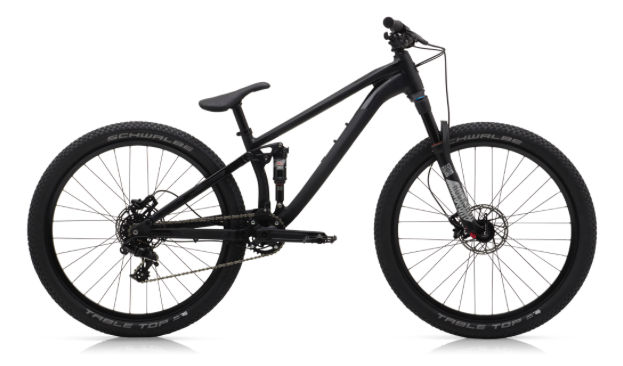

2017 Polygon Trid ZZ geometry
Full frame geometry for the 2017 Polygon Trid ZZ, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 33 | 558 | 425 | 70 | 69 | 120 | 575 | 330 | 649 | 8 |
All measurements in millimetres unless marked (°) for angles.
