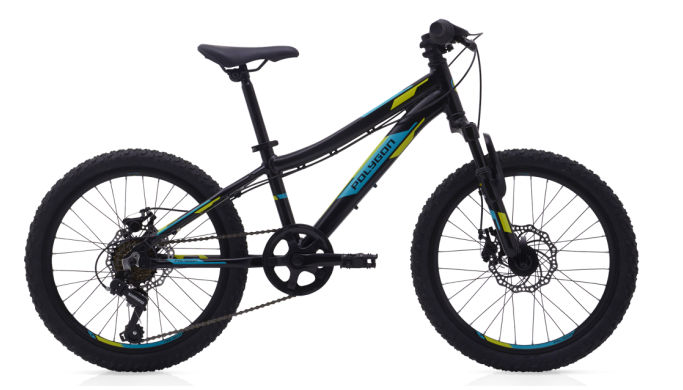

2017 Polygon Relic 20 geometry
Full frame geometry for the 2017 Polygon Relic 20, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 436 | 312 | 73 | 70 | 100 | 445 | 305 | 532 | 0 | 512 | 33 |
All measurements in millimetres unless marked (°) for angles.
