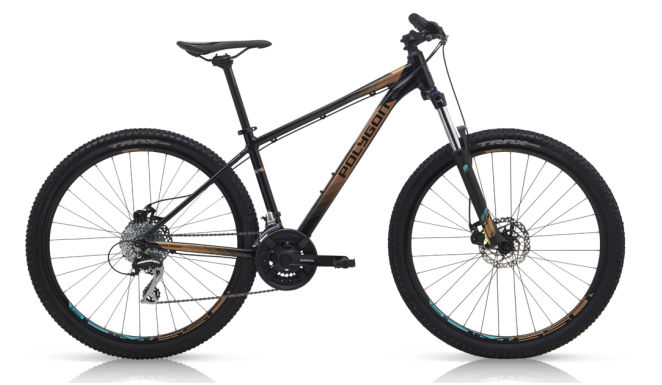

2017 Polygon Premier geometry
Full frame geometry for the 2017 Polygon Premier, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 610 | 398 | 73 | 69 | 100 | 585 | 456 | 753 | 47 |
| S | 610 | 384 | 73 | 69 | 100 | 570 | 406 | 713 | 47 |
| L (27.5) | 615 | 417 | 73 | 69 | 105 | 605 | 506 | 793 | 47 |
| L (29) | 624 | 415 | 71.7 | 69.5 | 100 | 606 | 470 | 776 | 60 |
| XL | 630 | 430 | 71.8 | 69.5 | 105 | 623 | 517 | 806 | 60 |
All measurements in millimetres unless marked (°) for angles.
