2017 Polygon Path geometry

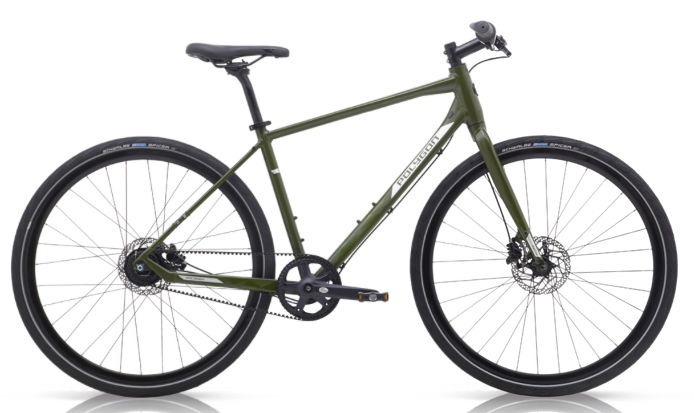

Name: 2017 Polygon Path
Brand: Polygon

Full frame geometry for the 2017 Polygon Path, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)
43	572	383	73.5	72.5	130	553	430	724	60
46	601	398	73.5	72.5	160	576	460	761	60
50	627	423	74	73	185	603	500	790	60
53	646	435	74	73	205	620	530	818	60
56	660	446	74	73	220	635	560	844	60

All measurements in millimetres unless marked (°) for angles.
