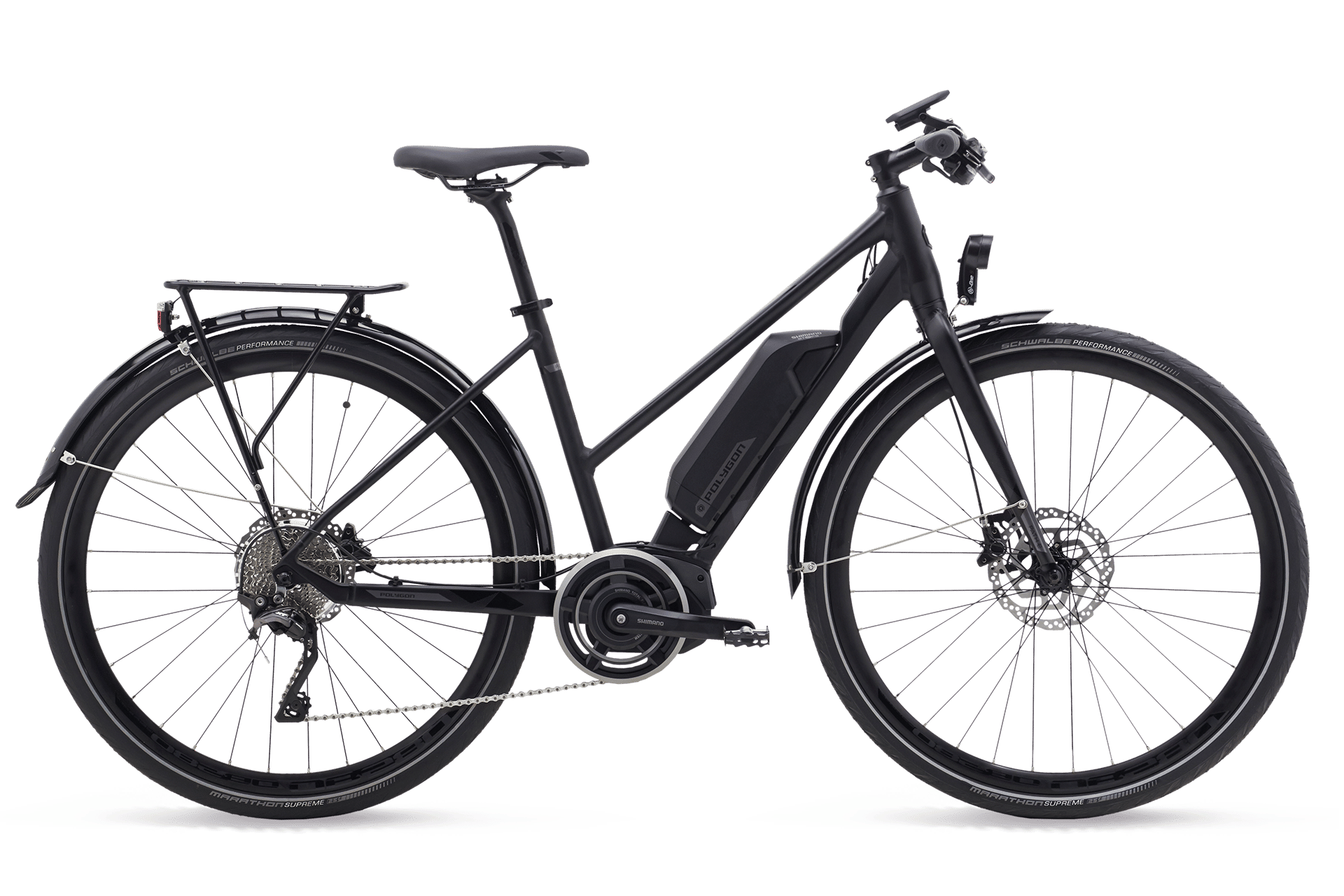

2018 Polygon Path-E Lady geometry
Full frame geometry for the 2018 Polygon Path-E Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 598 | 388 | 74 | 71.5 | 160 | 559 | 460 | 563 | 60 | 475 |
All measurements in millimetres unless marked (°) for angles.
