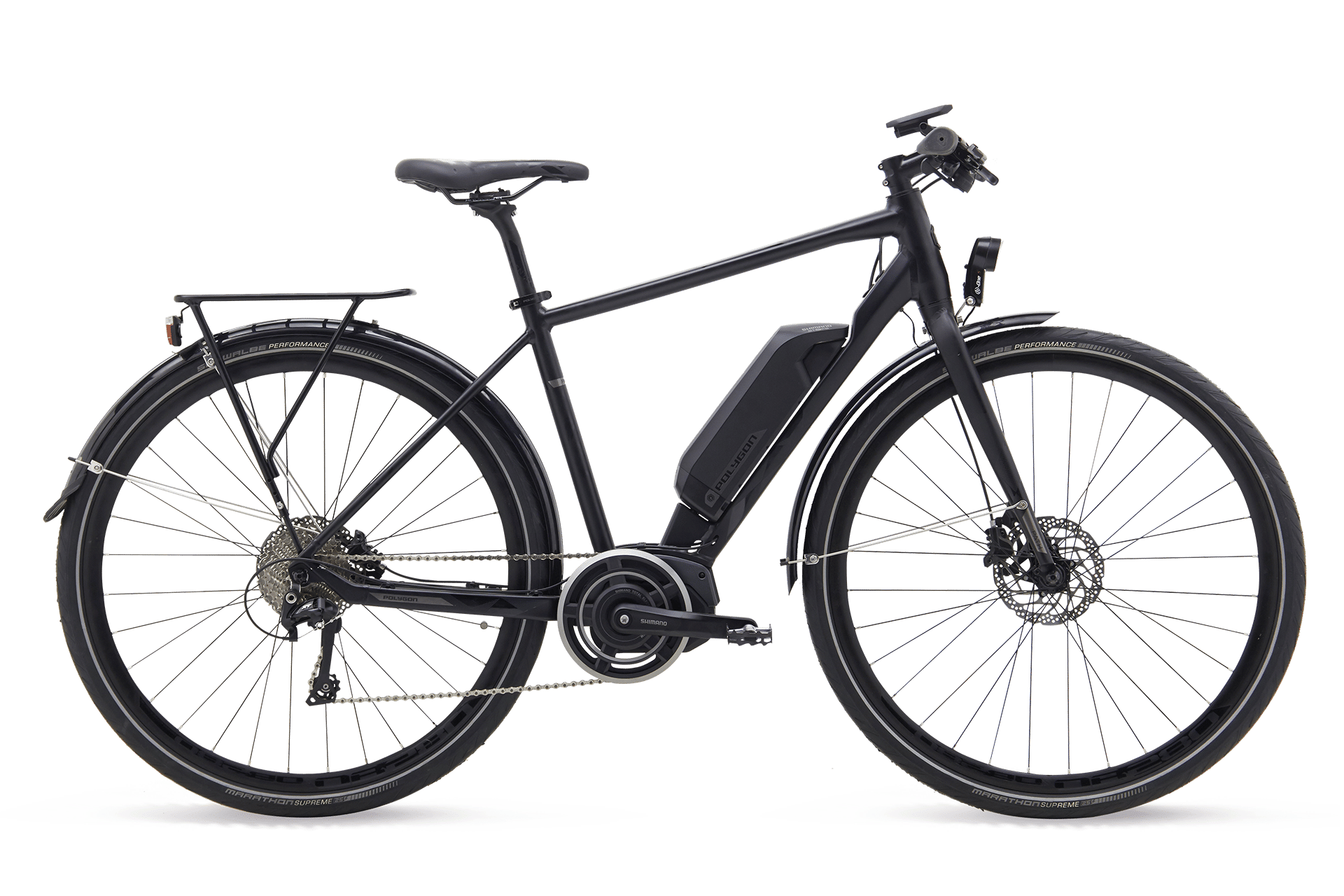

2018 Polygon Path-E Gent geometry
Full frame geometry for the 2018 Polygon Path-E Gent, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 601 | 393 | 73.5 | 72.5 | 160 | 575 | 470 | 758 | 60 | 475 |
| 50 | 627 | 423 | 74 | 73 | 185 | 603 | 500 | 786 | 60 | 475 |
| 53 | 646 | 435 | 74 | 73 | 205 | 620 | 530 | 814 | 60 | 475 |
| 56 | 660 | 446 | 74 | 73 | 220 | 635 | 560 | 840 | 60 | 475 |
All measurements in millimetres unless marked (°) for angles.
