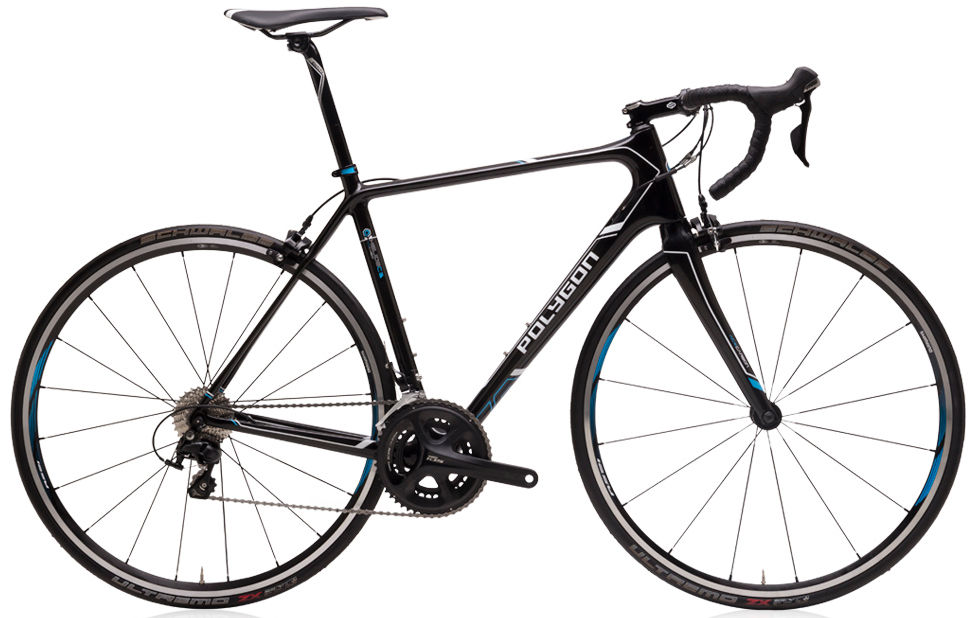

2015 Polygon Helios C6 geometry
Full frame geometry for the 2015 Polygon Helios C6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 518 | 357 | 74 | 70.5 | 120 | 505 | 460 | 698 | 70 | 567 | 408 | 965 |
| 48 | 524 | 360 | 74 | 71 | 125 | 510 | 480 | 715 | 70 | 568 | 408 | 966 |
| 50 | 539 | 366 | 74 | 71 | 140 | 520 | 500 | 733 | 70 | 579 | 408 | 976 |
| 53 | 566 | 367 | 73.5 | 72 | 165 | 535 | 530 | 762 | 70 | 580 | 408 | 978 |
| 56 | 582 | 382 | 73 | 72.5 | 180 | 560 | 560 | 787 | 70 | 595 | 408 | 993 |
| 58 | 627 | 383 | 73 | 73 | 225 | 575 | 580 | 814 | 70 | 605 | 408 | 1003 |
All measurements in millimetres unless marked (°) for angles.
