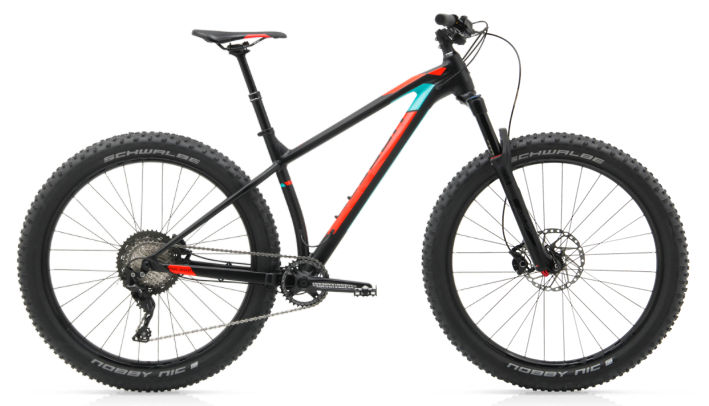

2017 Polygon Entiat geometry
Full frame geometry for the 2017 Polygon Entiat, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 623 | 384 | 69.5 | 68 | 100 | 565 | 395 | 693 | 55 |
| M | 627 | 410 | 69.5 | 68 | 105 | 596 | 435 | 702 | 55 |
| L | 632 | 431 | 69.5 | 68 | 110 | 621 | 485 | 735 | 55 |
All measurements in millimetres unless marked (°) for angles.
