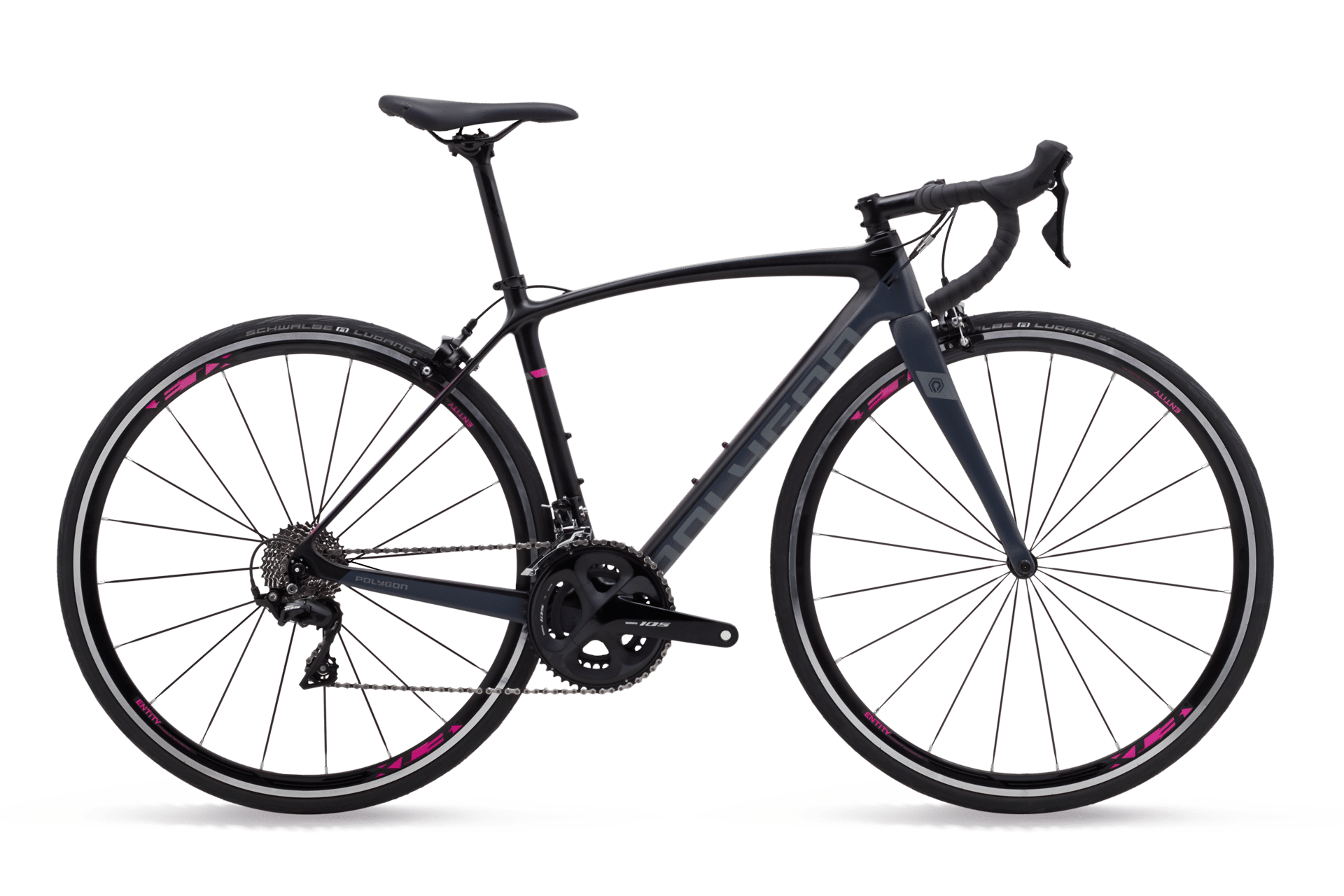

2019 Polygon Divine R7 geometry
Full frame geometry for the 2019 Polygon Divine R7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 507 | 385 | 75.5 | 72.2 | 110 | 515 | 470 | 718 | 68 | 405 | 971 |
All measurements in millimetres unless marked (°) for angles.
