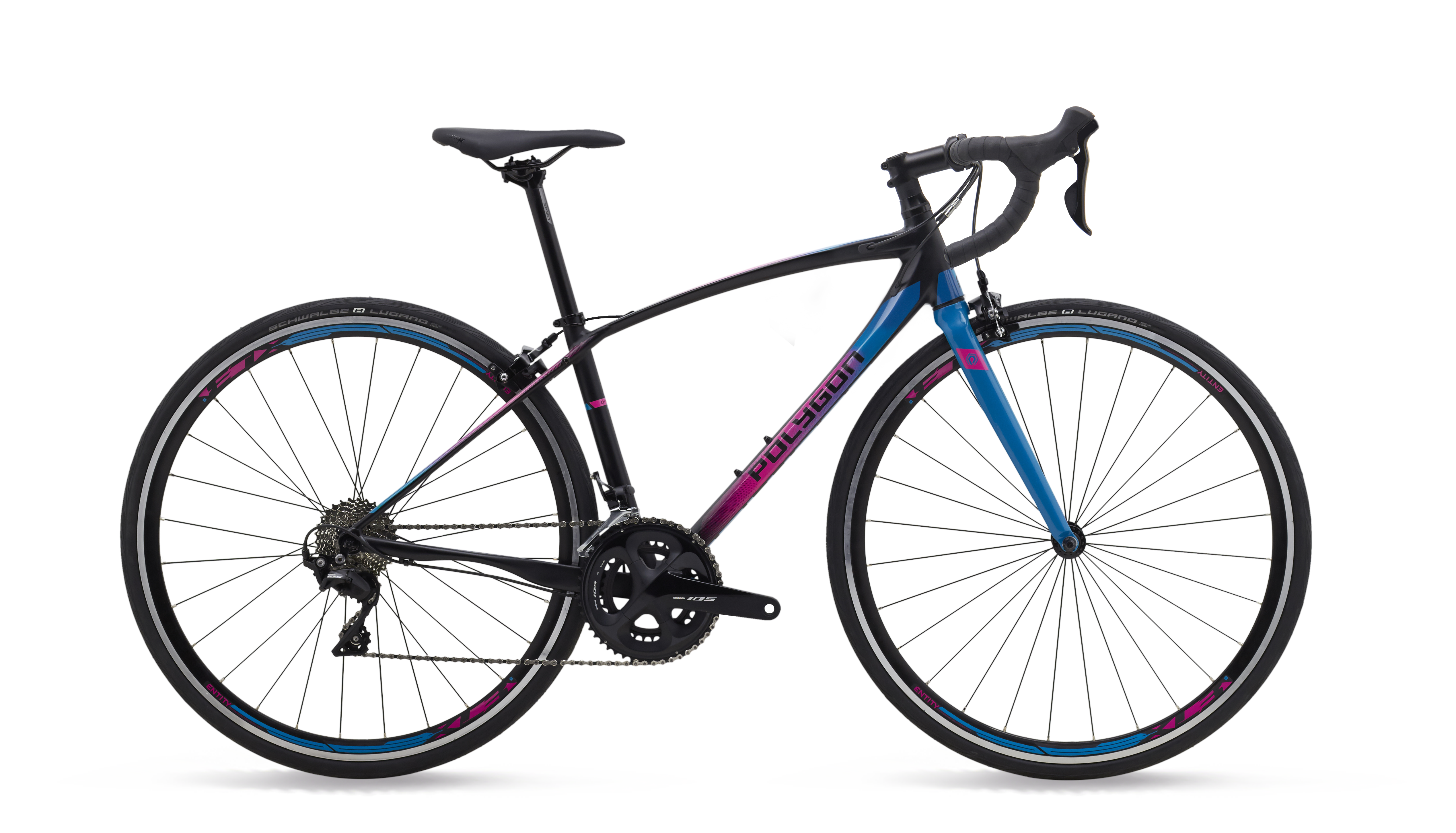

2019 Polygon Divine R5 geometry
Full frame geometry for the 2019 Polygon Divine R5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 516 | 372 | 73.5 | 70.5 | 115 | 525 | 370 | 645 | 72 | 420 | 991 |
| 46 | 525 | 380 | 73.5 | 70.5 | 125 | 535 | 400 | 672 | 72 | 420 | 1001 |
| 49 | 534 | 385 | 73.5 | 70.5 | 135 | 543 | 430 | 700 | 72 | 420 | 1010 |
All measurements in millimetres unless marked (°) for angles.
