2017 Polygon · MH

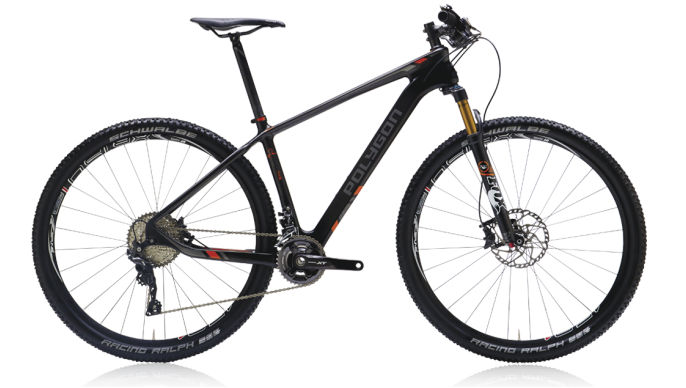

2017 Polygon Cozmic geometry
Full frame geometry for the 2017 Polygon Cozmic, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 612 | 383 | 72.1 | 70 | 100 | 394 | 704 | 60 |
| M | 630 | 402 | 72.1 | 71 | 115 | 445 | 749 | 60 |
| L | 635 | 416 | 72.2 | 71 | 120 | 496 | 791 | 60 |
All measurements in millimetres unless marked (°) for angles.
