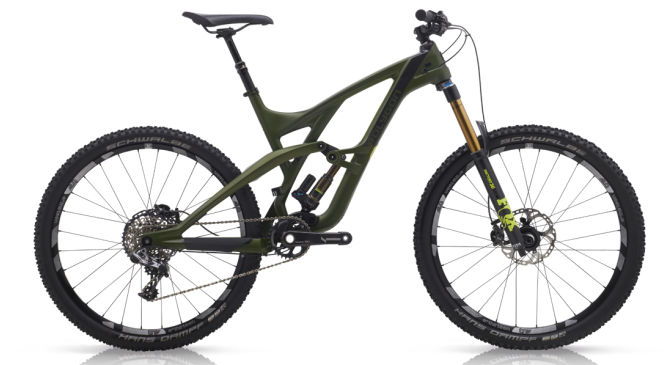

2017 Polygon Collosus geometry
Full frame geometry for the 2017 Polygon Collosus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 575 | 378 | 66 | 66.3 | 100 | 565 | 400 | 686 | 10 |
| M | 584 | 400 | 66 | 66.3 | 110 | 590 | 430 | 713 | 10 |
| L | 594 | 422 | 66 | 66.3 | 120 | 615 | 470 | 750 | 10 |
| XL | 603 | 444 | 66 | 66.3 | 130 | 640 | 520 | 780 | 10 |
All measurements in millimetres unless marked (°) for angles.
