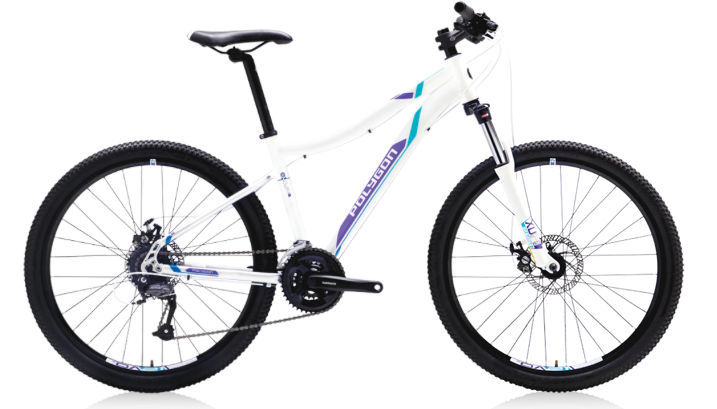

2017 Polygon Cleo geometry
Full frame geometry for the 2017 Polygon Cleo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 583 | 367 | 73.5 | 69 | 120 | 540 | 368 | 640 | 30 | 617 | 40 |
| 16 | 592 | 374 | 73.5 | 69.5 | 130 | 560 | 406 | 671 | 30 | 638 | 40 |
All measurements in millimetres unless marked (°) for angles.
