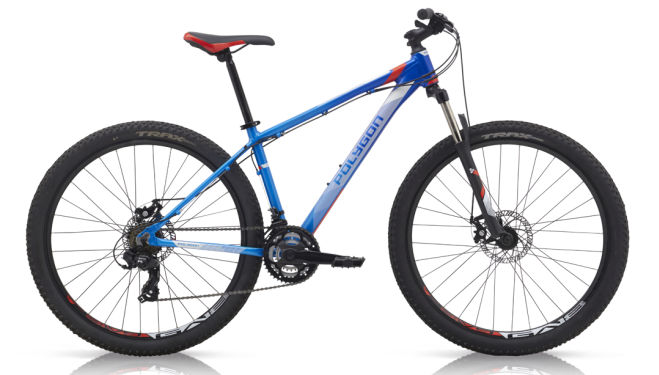

2017 Polygon Cascade geometry
Full frame geometry for the 2017 Polygon Cascade, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 384 | 73 | 69 | 100 | 565 | 406 | 707 | 47 |
| M | 598 | 402 | 73 | 69 | 105 | 585 | 456 | 747 | 47 |
| L | 602 | 420 | 73 | 69 | 110 | 604 | 500 | 482 | 47 |
All measurements in millimetres unless marked (°) for angles.
