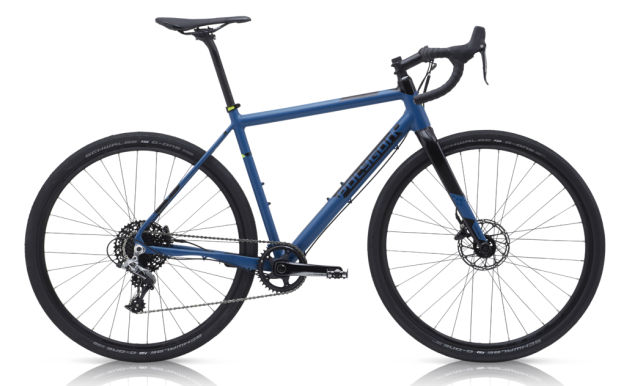

2017 Polygon Bend geometry
Full frame geometry for the 2017 Polygon Bend, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 49 | 538 | 381 | 74 | 70.5 | 130 | 535 | 490 | 740 | 65 |
| 52 | 564 | 383 | 73.5 | 71 | 155 | 550 | 520 | 769 | 65 |
| 56 | 585 | 392 | 73.5 | 71.5 | 175 | 565 | 560 | 802 | 65 |
| 59 | 606 | 406 | 73.5 | 72 | 195 | 585 | 590 | 829 | 65 |
All measurements in millimetres unless marked (°) for angles.
