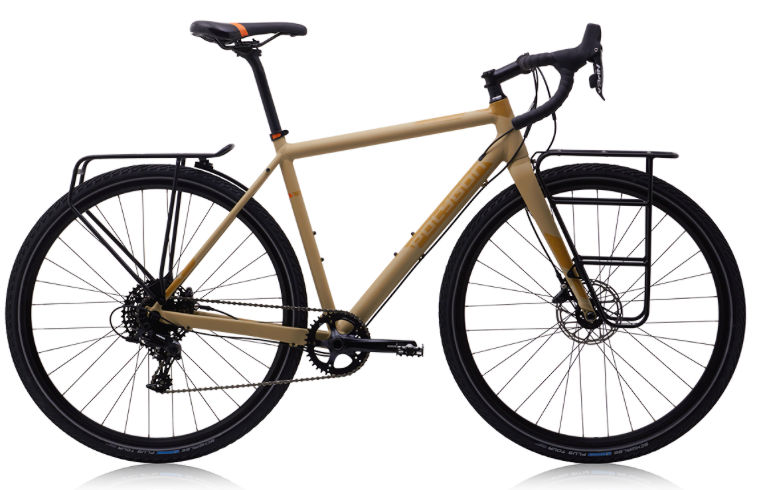

2017 Polygon Bend RIV geometry
Full frame geometry for the 2017 Polygon Bend RIV, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 49 | 478 | 397 | 74 | 72 | 180 | 571 | 490 | 770 | 65 |
| 52 | 505 | 410 | 73.5 | 72 | 200 | 595 | 520 | 797 | 65 |
| 56 | 541 | 415 | 73 | 72 | 225 | 613 | 560 | 833 | 65 |
| 59 | 568 | 425 | 73 | 72 | 245 | 629 | 590 | 860 | 65 |
All measurements in millimetres unless marked (°) for angles.
